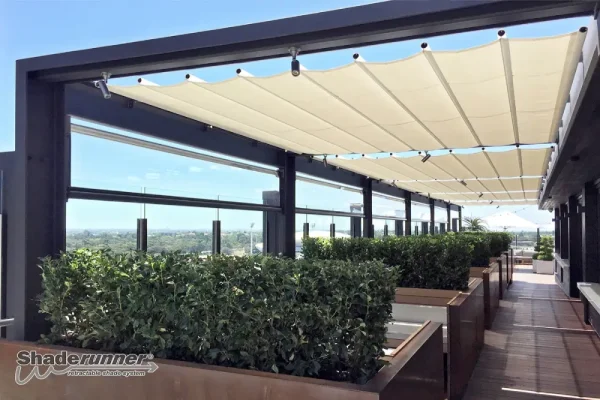

Shaderunner Retractable Shade System

Shaderunner Retractable Shade System is a smart and practical shading solution designed to enhance outdoor comfort while maintaining a modern appearance. This system is available in two reliable options:
1: Shaderunner Trax (Pergo) Designed specifically for pergola structures, offering guided fabric movement with added stability and reliable shade control.
2: Shaderunner Trax (Mono) A mono-track system suited for simpler installations, providing smooth operation and effective shading for various outdoor applications.
Both types offer smooth operation, durable construction, and the option for motorised control for added convenience. The system is fully customisable to suit different outdoor layouts, with a wide range of fabrics and colour choices to match your space. Designed to provide effective sun protection and weather resistance, the Shaderunner Retractable Shade System delivers a balance of functionality, style, and long-term performance for residential and commercial settings.

Need Help? Give us a call

1300 170 944

Reviews

There are no reviews yet.

Be the first to review “Shaderunner Retractable Shade System”

Your email address will not be published. Required fields are marked *

SHADERUNNER TRAX(PERGO)

Aluminium Pergo Modular Framed Structure

Specifications

  • Width: 7m maximum, with a single system, Wider widths achieved by linking structures
  • Extension: Up to 7m
  • Height: Up to 3m
  • Fabric Drop: 250-500mm typical stowed fabric depth (custom designed to suit site conditions) Framework 120x120mm Aluminium Posts & Beams
  • Details: 120x80mm Aluminium Running Tracks, Aluminium Coupling Joints & Bases, Powdercoated to a choice of colours, SS ball bearing runner wheels
  • Base Fixing: Existing Concrete Slabs or Decks, or standalone footings
  • Operation: Manual operation as standard with endless cord system & cleat, Motorised option with remote
  • Motor Type: Somfy RTS motor in powder-coated slimline headbox
  • Sensors: Optional wind, sun or rain sensors

Durable Components

The Shaderunner® TRAX ‘PERGO’ is constructed using only the most robust components, including custom-designed aluminium tracks & framework, SS roller bearing wheels & marine-grade fittings.

Multiple Aluminium Coupling Joints & Bases

The Trax ‘Pergo’ model features a multitude of bolt-together aluminium joiner connectors to choose the best frame configuration for site conditions. The lightweight but robust Aluminium Posts, Beams & Running Tracks, allows easy bolt together installation.

The Aluminium components can be powder coated to a multitude of colours to fit the surrounding decor. Side Blinds can also be added if required.

Weatherproofing Option

For a Waterproof Option, then special, differing length hangers are incorporated to enable side fall of the cross extrusions. This enables water to be discharged off the lower edge of the fabric. A side gutter can be integrated if required.

Versatile Design

The Aluminium Running Tracks, can either be fitted within the frame or above the frame to suit the site requirements.

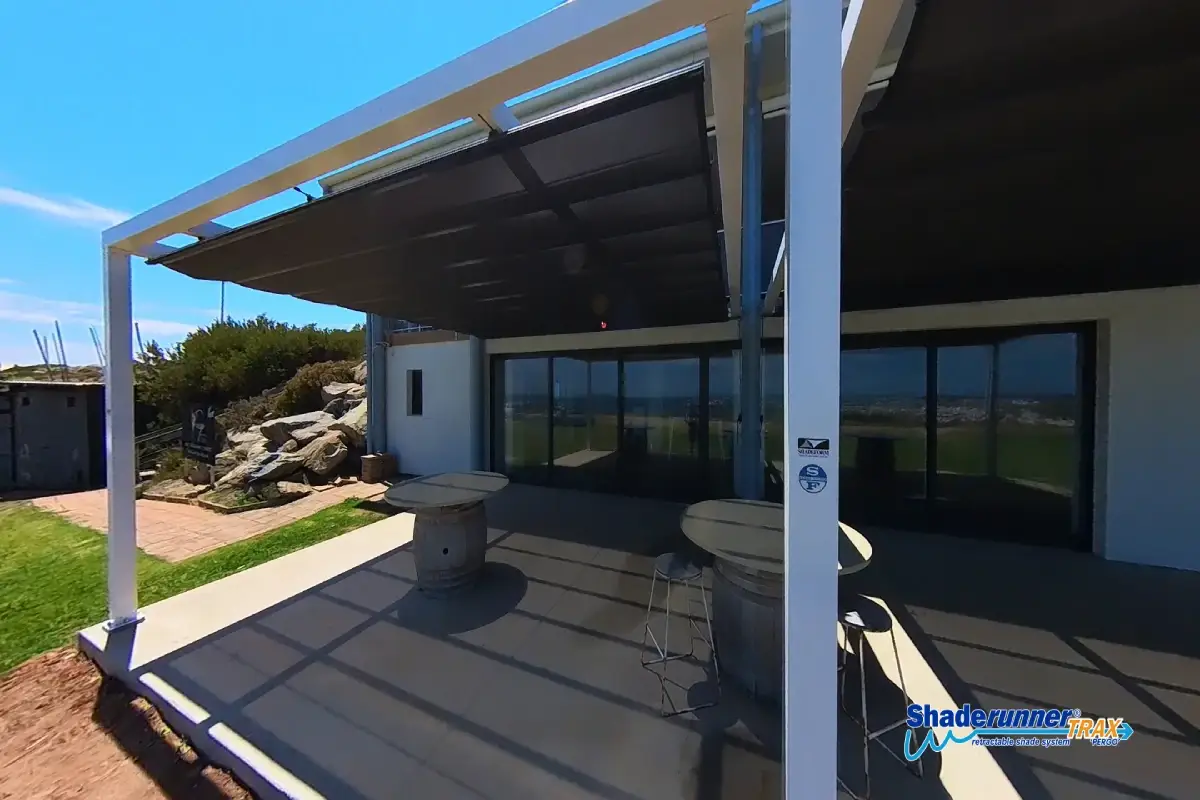

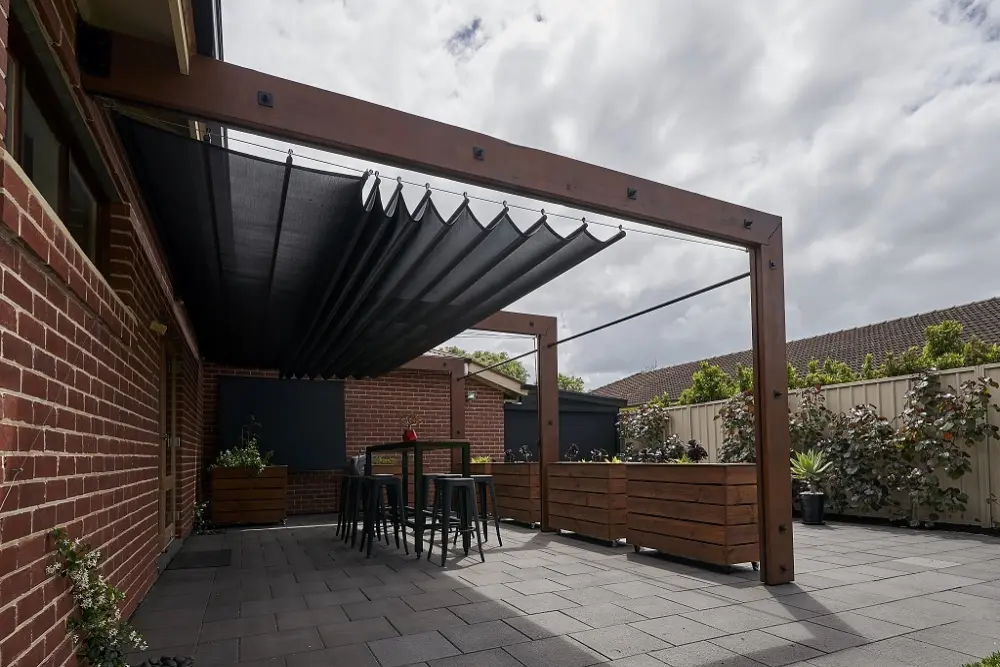

  • Shaderunner Trax Pergo Retractable Shade Image 1

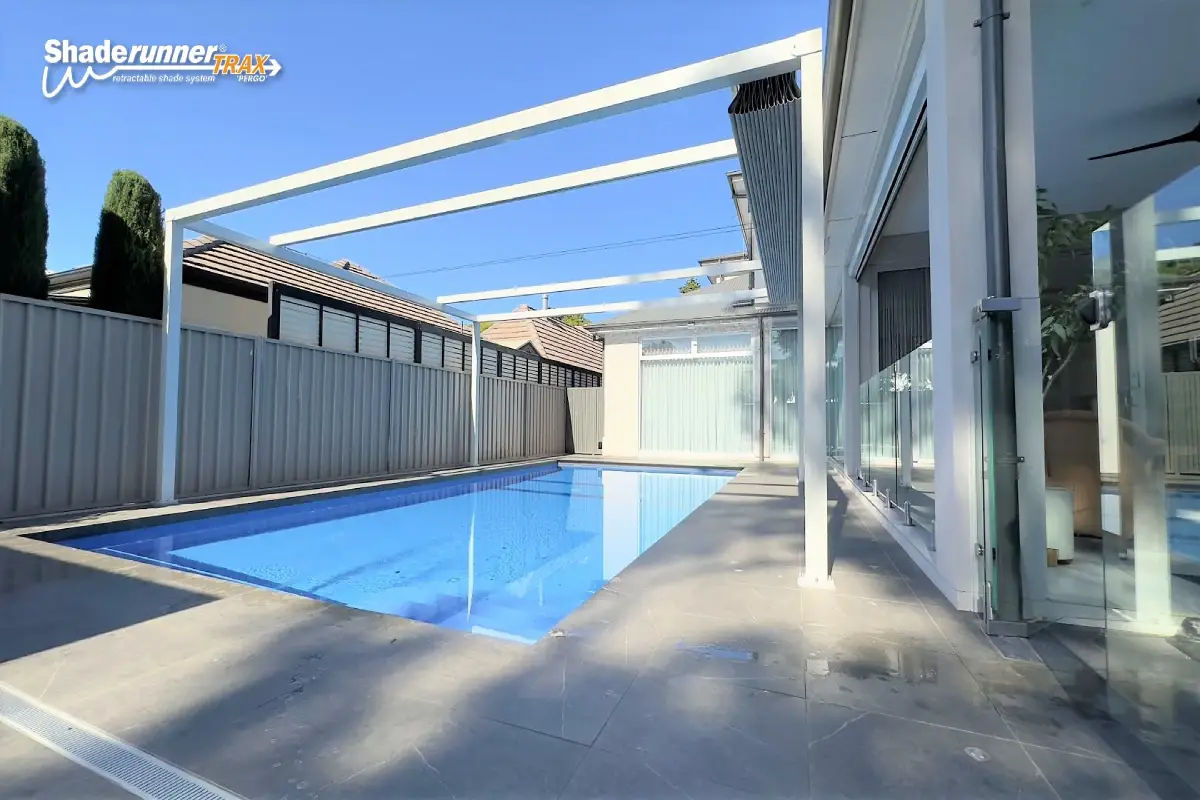

  • Shaderunner Trax Pergo Retractable Shade Image 2

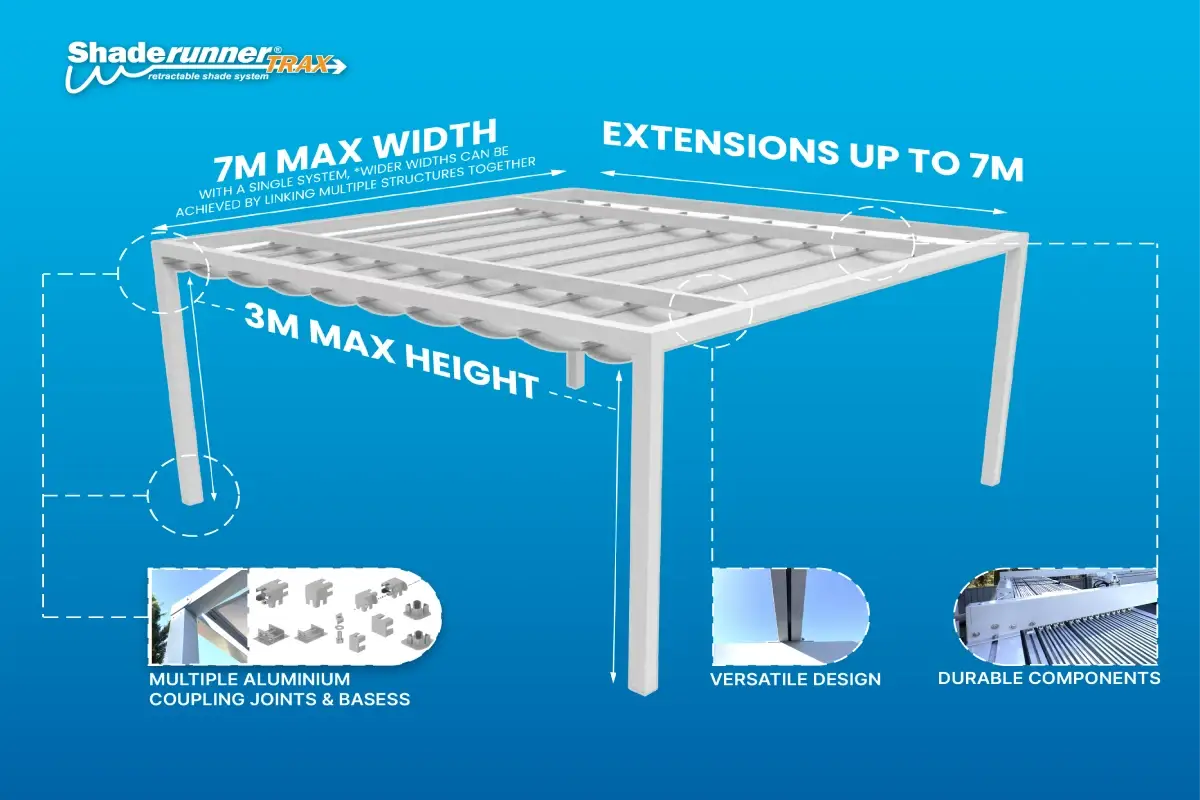

  • Shaderunner Trax Pergo Retractable Shade Image 3

SHADERUNNER TRAX(MONO)

Attach to Existing Structure

Specifications

  • Side mount with: 4m max with side mount angles, wider widths achieved with multiple bays
  • Under mount width: Up to 6.5m with 2 tracks, up to 7m with 3 tracks, max 4m between tracks. Wider widths achieved with multiple bays
  • Extension: Only limited by the support structure length
  • Fabric Drop: 250-500mm typical stowed fabric depth (custom designed to suit site conditions)
  • Details: 40x40mm Aluminium Running Tracks, Aluminium angles for side fix, SS ball bearing runner wheels
  • Operation: Manual operation as standard with endless cord system & cleat, Motorised option with remote. Motor type: RTS motor in powder-coated slimline headbox
  • Sensors: Optional wind, sun or rain sensors

The Shaderunner® TRAX ‘MONO’ is just supported by 40x40mm Aluminium tracks only. These can be mounted to the inside faces of existing steel, timber or other support structures, with the addition of an Aluminium Angle. Or the tracks can mount directly under the support structure.

  • Max Width between side tracks: 4m
  • Max Ext: Determined by dimensions of existing side structures

Weatherproofing Option

For a Waterproof Option, then special, differing length hangers are incorporated to enable water-side fall of the cross extrusions.

Durable Components

The Shaderunner® TRAX ‘MONO’ is constructed using only the most robust components, including custom-designed aluminium tracks & supports, ss roller bearing wheels (20mm to 90mm) & marine-grade fittings.

Durable Fabrics

The Shaderunner® is manufactured from a range of rigorously tested fabrics that are as durable as they are stylish, being designed to withstand high traffic applications and the demands of the harsh Australian climate with ease. (95% Mesh & Waterproof fabrics available)

Strong by Design

Robust aluminium extruded support profiles allow large spans of up to 7m wide with a single system. Wider widths are achieved with multiple bays.

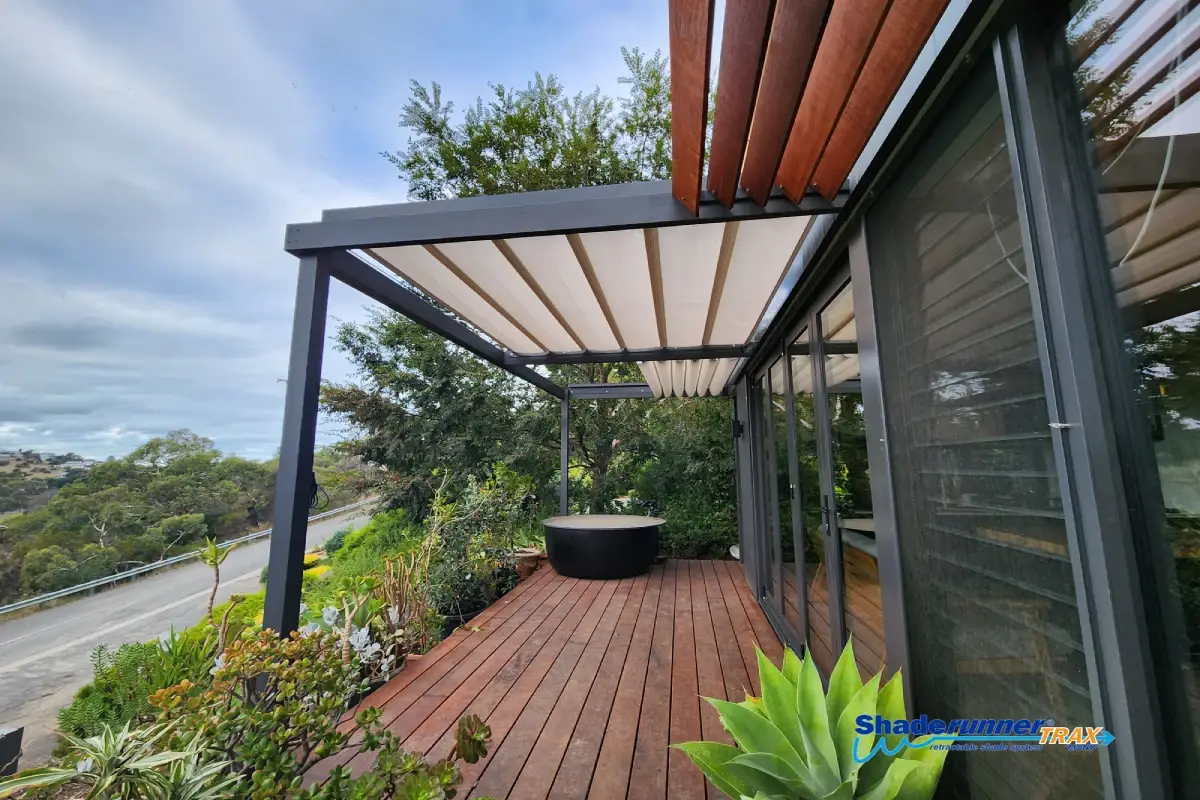

  • Shaderunner Trax Mono Retractable Shade Image 1

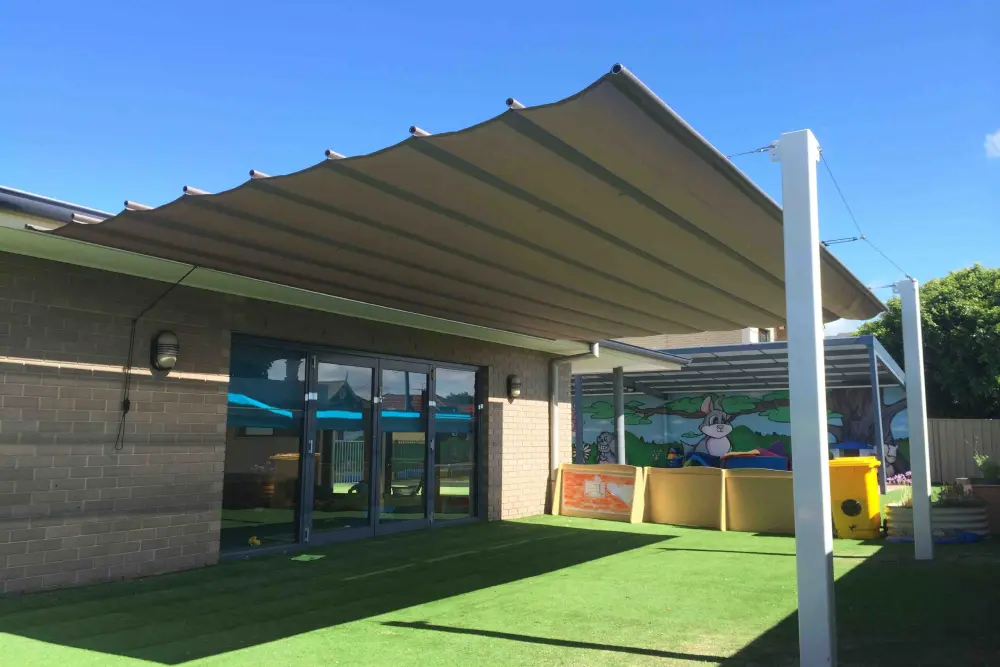

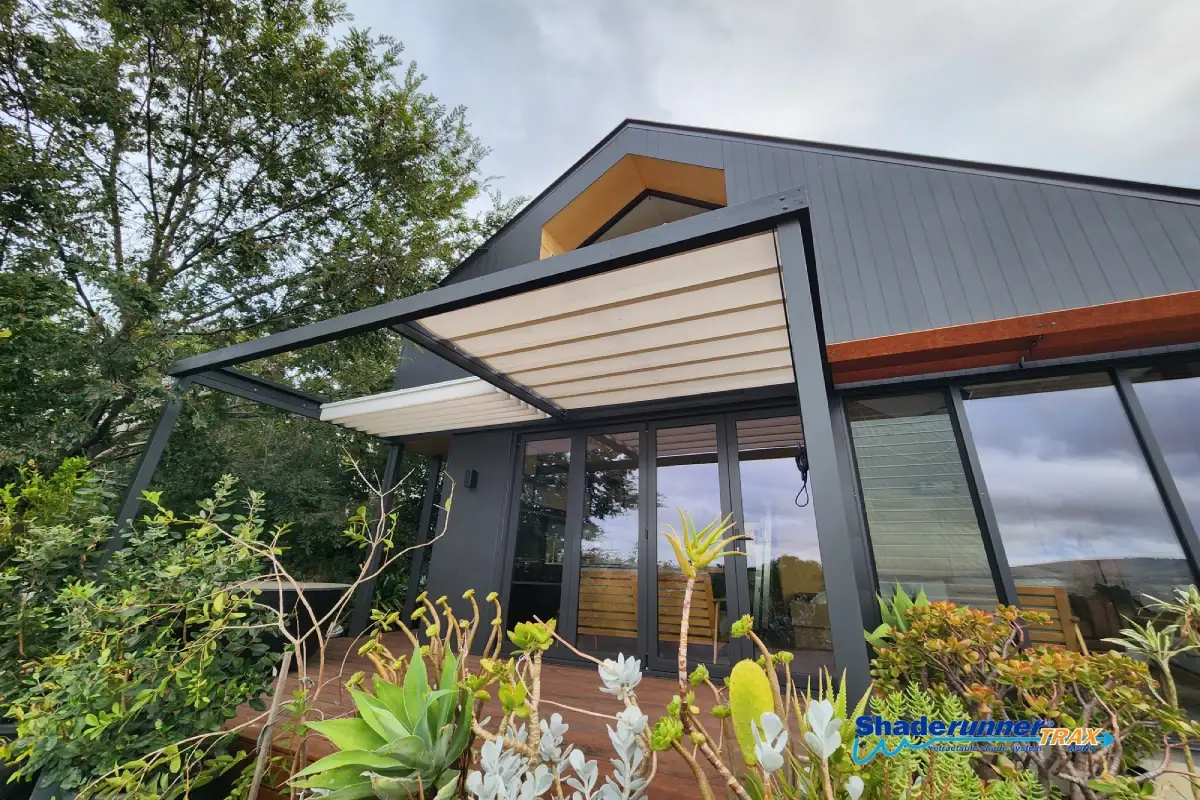

  • Shaderunner Trax Mono Retractable Shade Image 2

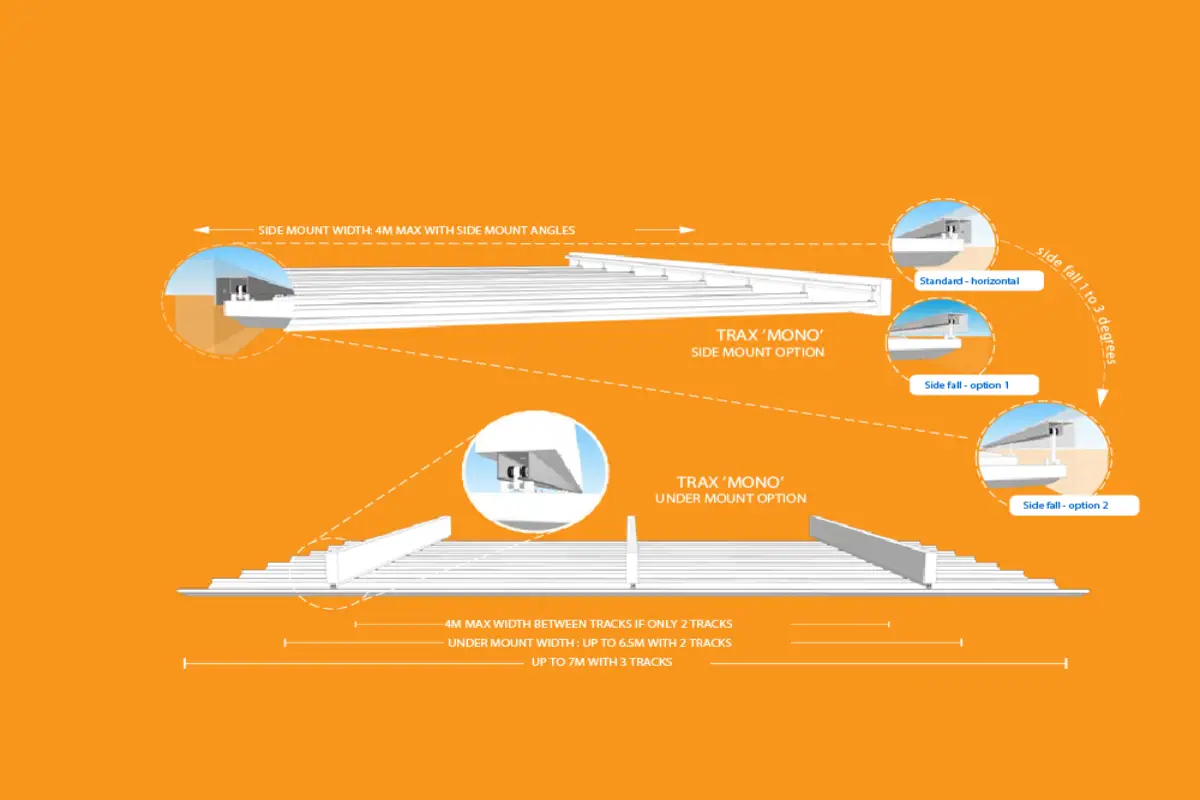

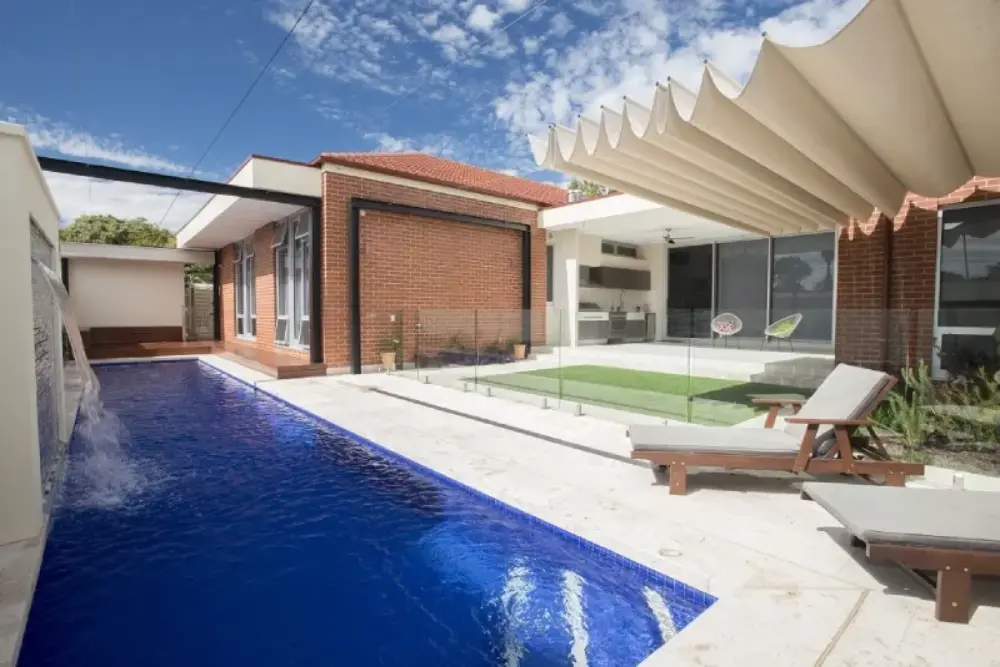

  • Shaderunner Trax Mono Retractable Shade Image 3
